Model Features

  • Cooler running, outboard bearing provides maintenance-free operation
  • Environmentally friendly oil-free technology
  • Extremely quiet operation
  • All motors are standard TEFC with Class F insulation, UL recognized, CE Compliant
  • Explosion-Proof motors available
  • Custom construction blowers are available
  • Rugged die cast aluminum construction

Selection & Ordering Data - Type 3BA1600

Curve
No.
Order
No.
Hz HP
Input
Voltage (V)
Input
Current (A)
Permissible total differential pressure2
Sound pressure level3
Weight (lbs.)
Vacuum inch H2O
Compressor
inch H2O
dB(A)
3~ 50/60 Hz IP55 insulation material class F
A 220 3BA1600-7AT06 50 2.15 200D… 240D 345Y…415Y 8.5D 4.9Y -64 60 69 57
A 221 3BA1600-7AT06 60 2.7 220D… 250D 415Y…460Y 7.5D 4.4Y -64 60 72 57
A 222 3BA1600-7AT16 50 2.95 200D… 240D 345Y…415Y 9.7D 5.6Y -85 70 70 64
A 223 3BA1600-7AT16 60 3.42 220D… 250D 415Y…460Y 10.3D 6.0Y -85 76 73 64
A 224 3BA1600-7AT26 50 4.02 200D… 240D 345Y…415Y 12.5D 7.2Y -104 108 70 75
A 225 3BA1600-7AT26 60 4.62 220D… 250D 415Y…460Y 12.6D 7.3Y -96 92 73 75
A 225 3BA1600-7AT25 60 4.60 575 5.8Y -96 92 73 75
A 226 3BA1600-7AT36 50 5.36 200D… 240D 345Y…415Y 17.3D 10Y -116 145 70 93
A 227 3BA1600-7AT36 60 6.16 220D… 250D 415Y…460Y 18D 10.4Y -128 124 73 93

Dimensions

3ba1600-Dimensions

Relief valve:
VC61Z (Vacuum)
PC61Z (Pressure)

Flter:
ATF-200-15124/1
(Vacuum)

AFS-30-200-10
(Pressure)

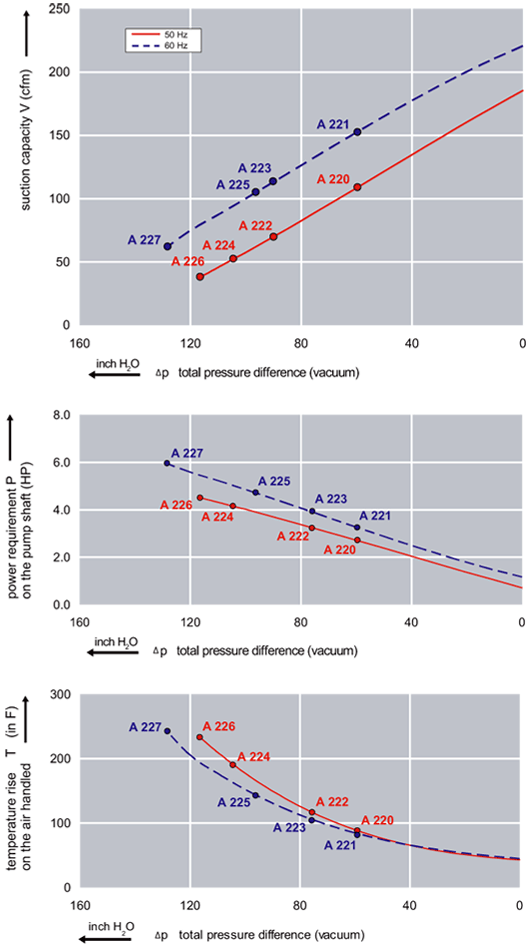

Performance Curve for Vacuum Pump

Performance Curve for Vacuum Pump

Performance Curve for Compressor

Performance Curve for Compressor
