Model Features

  • Compact light-weight design
  • Environmentally friendly oil-free technology
  • Operates quietly at a maximum 70 dB(A)
  • Maintenance free design
  • Cooler running outboard bearings increase service life
  • Built-in particulate filters and silencers
  • Handles vacuum and/or pressure applications
  • Ideal alternative to standard oil sealed rotary vane pumps

Notes

  • Standard voltage for three phase pumps is 208-230/460V 3ph 60Hz.
  • Standard voltage for single phase pumps is 115/230/1ph 50/60Hz, or 115V/1ph 60Hz, or 230V/1ph 60Hz
  • All pumps available in 50Hz frequency and with other voltages.

Selection & Ordering Data - KRF-25

Vacuum Specifications
Model Number
Motor
RPM
HP
CFM
Max. Hg (Inches)
Weight (lbs.)
Kgs
KRF25-SS-7501-G3 w/o motor N/A N/A 17 27.5″ 32 14
KRF25-SS-7501-G1 208-230/460V 1750 1.0 17 27.5″ 58 26
KRF25-SS-7502-G1 115/230V 1750 1.0 17 27.5″ 58 26
Pressure Specifications
Model Number
Motor
RPM
HP
CFM
Max. PSI
Weight (lbs.)
Kgs
KRF25-SS-7550-G3 w/o motor N/A N/A 17 14 psig 32 14
KRF25-SS-7550-G1 208-230/460V 1750 1.0 17 14 psig 58 26
KRF25-SS-7551-G1 115/230V 1750 1.0 17 14 psig 58 26

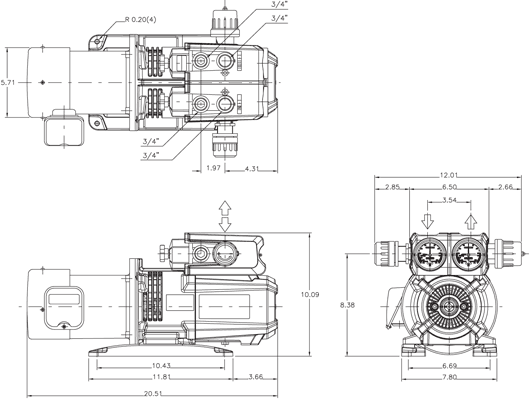

Dimensions

Dimensions

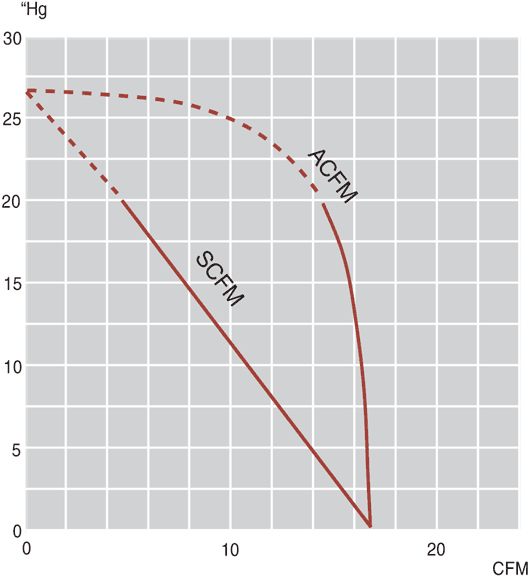

Performance Curves: 60Hz Vacuum

Performance Curves: 60Hz Vacuum

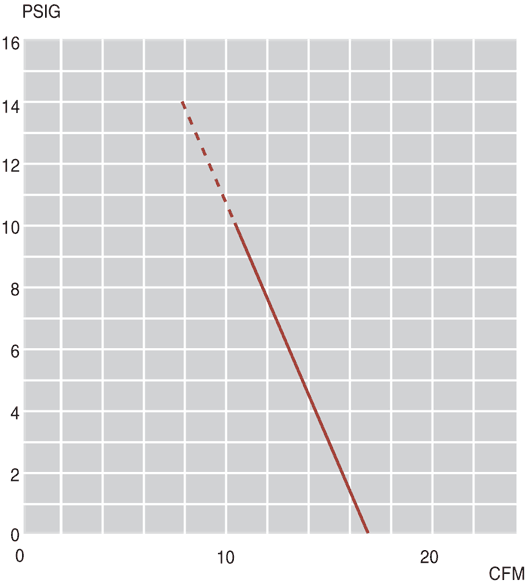

Performance Curves: 60Hz Pressure

Performance Curves: 60Hz Pressure
