Model Features
- Compact light-weight design
- Environmentally friendly oil-free technology
- Operates quietly at a maximum 70 dB(A)
- Maintenance free design
- Cooler running outboard bearings increase service life
- Built-in particulate filters and silencers
- Handles vacuum and/or pressure applications
- Ideal alternative to standard oil sealed rotary vane pumps
Notes
- Standard voltage for three phase pumps is 208-230/460V 3ph 60Hz.
- Standard voltage for single phase pumps is 115/230/1ph 50/60Hz, or 115V/1ph 60Hz, or 230V/1ph 60Hz
- All pumps available in 50Hz frequency and with other voltages.
Selection & Ordering Data - KRX-1
Vacuum Specifications
|
Model Number
|
Motor
|
RPM
|
HP
|
CFM
|
Max. Hg (Inches)
|
Weight (lbs.)
|
Kgs
|
| KRX1-SS-2001-G3 |
w/o motor |
N/A |
N/A |
5.5 |
25″ |
20 |
9 |
| KRX1-SS-2001-G1 |
208-230/460V |
1750 |
0.25 |
5.5 |
25″ |
33 |
15 |
| KRX1-SS-2002-G1 |
115/230V |
1750 |
0.25 |
5.5 |
25″ |
33 |
15 |
|

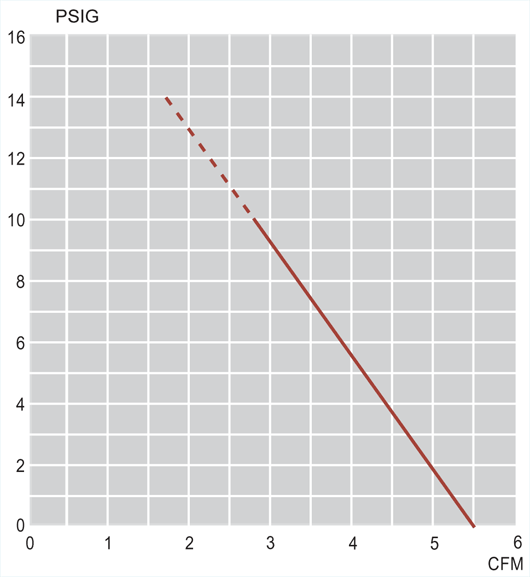

Pressure Specifications
|
Model Number
|
Motor
|
RPM
|
HP
|
CFM
|
Max. PSI
|
Weight (lbs.)
|
Kgs
|
| KRX1-SS-2050-G3 |
w/o motor |
N/A |
N/A |
5.5 |
14 psig |
20 |
9 |
| KRX1-SS-2050-G1 |
208-230/460V |
1750 |
0.25 |
5.5 |
14 psig |
33 |
15 |
| KRX1-SS-2051-G1 |
115/230V |
1750 |
0.25 |
5.5 |
14 psig |
33 |
15 |
Dimensions
