The Airtech oil-flooded, multi-vane vacuum pumps are single stage, air cooled and direct driven. This simple design ensures the reliability and the durability that is required in the vacuum industry.

Model Features

Category-l160c

  • High performance carbon composite vanes
  • Oil level sight glass
  • Vibraton isolators
  • Anti-suck back valve
  • Integral exhaust filters
  • TEFC high-efficiency tri-voltage motor (208-230-460V 50/60)
  • Exhaust pressure gauge
  • Wire mesh inlet screen
  • Spin-on oil filter

L160C Specifications (60 Hz)

Model
CFM
HP
RPM
Sound Level
dB(A)
End Vacuum
(Torr)
Weight with
motor (lbs.)
Oil Quantity
L160C 130 7.5 1725 74 0.5 390 7 qts.

L160C Dimensions (Inches)

L160C-Drawing

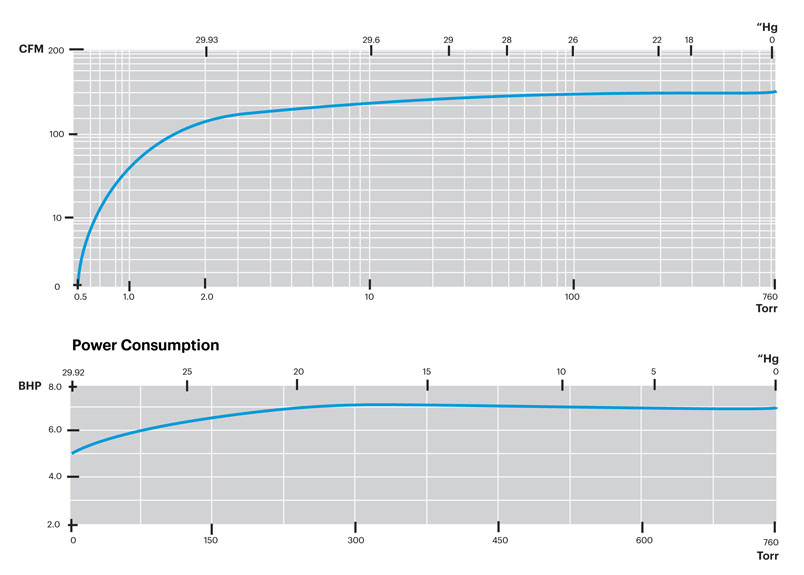

L160C Performance Curves

L160C-Performance-Curves
